High-Gloss PVC SPC wall panels UV Coating Solution
Product Introduction
Formulated with solvent-free epoxy acrylate UV coating, single-component storage at room temperature, instant curing under UV light. The film features high transparency and mirror gloss, providing high-brightness decoration and basic protection for PVC wall panels. Suitable for printed/solid PVC substrates, it is a mainstream solution for high-end interior decoration.
Targeted Solutions for Advanced Wall Panel Finishing
This high gloss uv coating for pvc is engineered for manufacturers and fabricators specializing in premium wall panels, positioning itself as a critical material in surface finishing. Designed explicitly for pvc wall panel uv coating applications, it addresses the needs of pvc uv coating manufacturer operations by delivering consistent coating quality with excellent adhesion and hardness. The solution targets commercial and residential interior wall panel producers seeking to enhance durability and aesthetics simultaneously. Through user-centric formulation, this uv coating supplier for wall panels facilitates scalable production with rapid curing times, optimizing throughput for large-volume industrial deployments.
Technical Integrity and Measurable Specifications
The uv coating supplier for wall panels integrates a solvent-free, epoxy acrylate-based composition offering rapid UV curing within seconds. It attains a 95° or higher gloss level, combined with pencil hardness rating of ≥2H, and Grade 1 adhesion per cross-cut test standards, reflecting reliability in surface protection. Its VOC-free, environmentally compliant formula ensures non-yellowing properties exceeding 500 hours while maintaining moisture resistance and ease of maintenance. Designed for automated roll coating and UV curing systems, this high gloss uv coating for pvc offers uniform viscosity and high solid content, guaranteeing consistent film formation and long-term performance in advanced manufacturing lines.
Applications Highlighting Industry Relevance and Value

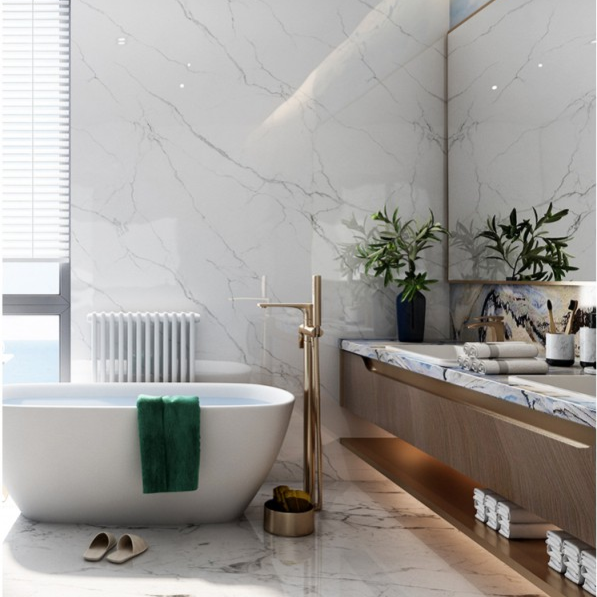

In commercial construction and decorative sectors, pvc wall panel uv coating solutions extend the service life and appearance of interior partition systems, office interiors, and hospitality environments. This high gloss uv coating for pvc is instrumental in finishing wall panels with mirror-like clarity, especially in high-traffic lobbies, showrooms, and residential living spaces, meeting stringent appearance and durability standards. Its fast-curing properties enable integration into automated workflows, reducing cycle times and costs for pvc uv coating manufacturer enterprises. By offering protective and aesthetic enhancements, this coating serves as a strategic upgrading material within modern building and refurbishment projects.
Product Advantages
Structural Innovation and Design Efficiency
Engineered with precise viscosity control and compatibility for roll coaters and medium-pressure UV curing equipment, this product exemplifies efficient system integration, a key factor for pvc uv coating manufacturer production lines. Its single-component, solvent-free formula supports streamlined operational design by eliminating multi-stage processes while delivering consistent optical quality. As a pvc wall panel uv coating, it demonstrates excellent adhesion and scratch resistance, supporting modular wall panel systems where durability without delamination is critical. The design advances enable seamless application on varied panel substrates without compromising coating uniformity or aesthetic quality.
Optimized Performance Enhancing End-User Value
The high gloss uv coating for pvc delivers superior surface hardness and rapid cure times, boosting manufacturing productivity and final product robustness. Its chemical composition ensures long-term resistance to yellowing and abrasion, simplifying maintenance for downstream users while upholding indoor air quality compliance through its VOC-free formulation. End users benefit from a cleanable, high-sheen surface that preserves design intent in commercial interiors, contributing to asset longevity and reduced lifecycle costs. As a uv coating supplier for wall panels, the product facilitates both operational efficiency and end-user satisfaction with reliable protective and visual performance.
Application Scope
Interior home decoration (living room/bedroom feature walls, kitchen/bath dry-area wall panels), commercial spaces (exhibition halls/counters/hotel lobby decorative panels), furniture finishes (PVC cabinet doors, decorative moldings).
Performance Characteristics
| Features |
| High gloss (≥95°), mirror effect, transparent and plump |
| High hardness (pencil hardness ≥2H), scratch and abrasion resistant |
| Adhesion Grade 1 (cross-cut method), no delamination or peeling |
| Yellowing resistance (≥500h), water/moisture resistant, easy to clean |
| VOC-free, fast curing (3-5s), high production efficiency |
Physical Parameters
| |
Item |
Parameter |
|
| |
Appearance |
Transparent clear liquid |
|
| |
Viscosity (Ford Cup #4, 25℃) |
12-18 s |
|
| |
Density |
1.05-1.15 g/cm³ |
|
| |
Solid Content |
≥98 % |
|
| |
Solidified Energy |
600-800 mj/cm² |
|
| |
Gloss after curing (60° angle) |
95-100° |
|
| |
Pencil Hardness |
≥2H |
|
| |
Adhesion (Cross Cut Method) |
Grade 1 |
|
Construction Equipment
Roll coater (two/three-roll), UV curing machine (10-15KW medium-pressure mercury lamp), IR leveling machine, electrostatic dust remover, adjustable-speed conveyor chain, coating weight controller, UV energy meter.
Coating Process Steps
- （Electrostatic dust removal + isopropyl alcohol wiping to remove oil, dust and release agent, ensuring a clean surface.）
- （Preheat at 40-50℃ for 1-2min in winter; room temperature in summer to reduce coating viscosity and improve leveling.）
- （Apply dedicated UV primer at 4-6g/m², roll speed 5-8m/min for uniform coverage.）
- （UV lamp power 10-15KW, lamp distance 15-20cm, chain speed 6-10m/min, energy 200-300mj/cm², cure 3-5s.）
- （Apply high-gloss UV topcoat at 8-12g/m², roll speed 6-9m/min for uniform thickness.）
- （Heat at 60-70℃ for 1-2min to eliminate roll marks and enhance mirror effect.）
- （UV lamp power 12-15KW, intensity 600-1000mw/cm², energy 600-800mj/cm², cure 5-8s for full hardening.）
- （Cool to room temperature naturally, inspect, film-wrap and package.）
Coating Weight
Primer 4-6g/m²; Topcoat 8-12g/m²; Total 12-18g/m².
Matte & Wear-Resistant UV Coating Solution
Product Introduction
Modified polyurethane acrylate UV coating with nano-silica matting powder. The film is matte and delicate (15-45°), with high wear/scratch resistance and fingerprint resistance. Ideal for PVC wall panels in public and high-frequency use areas, balancing decoration and durability.
Application Scope
Hospital/school corridor panels, office buildings, shopping mall walkways, bathroom dry areas, nursing home/hotel room panels (anti-glare, impact-resistant).
Performance Characteristics
| Features |
| Matte texture (adjustable 15-45°), anti-glare, non-dazzling |
| Ultra wear-resistant (≥5000 abrasion cycles), scratch-proof (no marks with steel wool) |
| Fingerprint/oil resistant, easy to clean, low maintenance |
| High hardness (≥3H), impact and bump resistant |
| Good adhesion, water/alkali resistant, no whitening after long-term use |
Physical Parameters
| Parameter |
Data |
| appearance |
Milky translucent liquid |
| Viscosity (Coating - 4 cups, 25℃) |
15-20s (Ford Cup #4, 25℃) |
| density |
1.10-1.20g/cm³ |
| solid content |
≥98% |
| solidified energy |
700-900mj/cm² |
| Gloss after curing (60°) |
15-45° (adjustable, 60° angle) |
| pencil hardness |
≥3H |
| Wear resistance (Taber, 500g) |
≥5000 cycles (Taber, 500g) without damage |
Construction Equipment
- Same as high-gloss solution, plus abrasion tester, gloss meter.
Coating Process Steps
- （Same as high-gloss solution.）
- （Same as high-gloss solution.）
- （Same as high-gloss solution, coating weight 5-7g/m².）
- （Same as high-gloss solution.）
- （Apply wear-resistant intermediate coat at 6-8g/m² to enhance scratch resistance.）
- （Cure at 300-400mj/cm² for 3-5s.）
- （Apply matte wear-resistant topcoat at 10-14g/m², roll speed 5-8m/min.）
- （Heat at 70-80℃ for 1-2min to ensure uniform matting powder dispersion and consistent matte texture.）
- （UV lamp 12-15KW, energy 700-900mj/cm², cure 5-8s for full wear resistance.）
- （Same as high-gloss solution.）
Coating Weight
Primer 5-7g/m²; Intermediate 6-8g/m²; Matte Topcoat 10-14g/m²; Total 21-29g/m².
Antibacterial & Mildew-Resistant UV Coating Solution
Product Introduction
Modified UV coating with silver ions/zinc oxide, food-grade antibacterial ingredients. The film is transparent and matte, with long-term antibacterial (≥99% inhibition) and mildew-resistant (Grade 0) properties, heat/humidity resistance. Ideal for PVC wall panels in humid, high-sanitary areas such as kitchens, bathrooms, medical and food processing zones.
Application Scope
Kitchen/bathroom panels, hospital operating rooms/wards, nursing homes, food factory clean areas, dry areas around swimming pools, baby rooms.
Performance Characteristics
| Features |
| Long-term antibacterial: ≥99% inhibition against E. coli/S. aureus |
| Mildew resistance Grade 0 (highest), no mildew in humid environments |
| Heat/humidity resistant (80℃/90%RH, 48h no abnormality) |
| Low gloss (20-40°), fingerprint resistant, easy to clean |
| Non-toxic, compliant with food contact grade standards |
Physical Parameters
| Parameter |
Data |
| appearance |
Transparent light yellow liquid |
| Viscosity (coating - 4 cups, 25℃) |
13-19s (Ford Cup #4, 25℃) |
| density |
1.08-1.18g/cm³ |
| solid content |
≥98% |
| solidified energy |
650-850mj/cm² |
| Gloss after curing (60°) |
20-40° (60° angle) |
| Antimicrobial rate (Escherichia coli / Staphylococcus aureus) |
≥99% (E. coli/S. aureus) |
| Mildew resistance grade |
Grade 0 |
Construction Equipment
- Same as matte wear-resistant solution, plus antibacterial tester, constant temperature/humidity chamber.
（Coating Process Steps）
- Same as high-gloss solution, ensure no oil residue (affects antibacterial effect).）
- （Same as high-gloss solution.）
- （Apply dedicated antibacterial primer at 5-6g/m² to enhance adhesion of antibacterial layer.）
- Same as high-gloss solution.）
- （Apply antibacterial/mildew-resistant UV topcoat at 9-13g/m², roll speed 5-7m/min for uniform coverage.）
- （Heat at 65-75℃ for 1-2min to ensure uniform dispersion of antibacterial ingredients, no agglomeration.）
- （UV lamp 12-15KW, energy 650-850mj/cm², cure 5-8s to lock antibacterial ingredients (no precipitation).）
- （Same as high-gloss solution, plus random antibacterial/mildew resistance inspection.）
Coating Weight
Primer 5-6g/m²; Antibacterial Topcoat 9-13g/m²; Total 14-19g/m².
Soft-Touch & Scratch-Resistant UV Coating Solution
Product Introduction
Modified aliphatic polyurethane UV coating with nano-elastic particles. The film is matte and silky (soft-touch), scratch/stain resistant, with a delicate feel like baby skin. Ideal for PVC wall panels in high-end homes and luxury commercial spaces, focusing on tactile experience.
Application Scope
High-end villa feature walls, luxury hotel rooms, club/exhibition decorative panels, smart home panels, children's room panels (safe touch).
Performance Characteristics
| Features |
| Soft-touch delicate: smooth surface, no grainy feel, comfortable touch |
| Strong scratch resistance: withstands steel wool wiping, no scratches |
| Stain-resistant & easy to clean: resists lipstick/markers, removable with daily wiping |
| Low gloss (10-30°), fingerprint resistant, matte luxury feel |
| Yellowing/water resistant, touch does not fade with long-term use |
FAQ
What substrates are compatible with your High-Gloss PVC SPC Wall Panel UV Coating?
Our pvc wall panel uv coating is formulated for use on both printed and solid PVC and SPC substrates commonly applied in wall panel production. This ensures strong adhesion and durability tailored for industrial finishing standards.
Can you provide customized UV coating formulations for specific manufacturing needs?
Yes, we offer tailored solutions to fit your production requirements. Our R&D team works closely with clients to adjust coating properties, ensuring our pvc uv coating manufacturer capabilities suit automated lines and specific application conditions.
How should the High-Gloss PVC SPC Wall Panel UV Coating be applied in production?
The coating is designed for use with roll coaters combined with UV curing machines. It cures rapidly within 3-5 seconds using medium-pressure mercury lamps, optimizing throughput for industrial-scale finishing of PVC and SPC wall panels.
What maintenance benefits does your UV coating offer for wall panels?
Our coating delivers excellent scratch resistance, yellowing resistance, and moisture protection. The solvent-free, VOC-free formula provides long-term surface gloss and easy cleaning, preserving the appearance and structural integrity of your panels over time.
