Curtain UV coating

Product Introduction

Curtain coating UV paint is full name of UV curable special curtain coating paint. It is a solvent-free 100% solid content environmentally friendly photocuring coating. It is mainly composed of modified epoxy acrylate and polyurethane acrylate resin, compounded with high-end photoinitiator, leveling agent, defoamer and anti-yellowing additives.

It forms a continuous and uniform paint curtain through curtain coater, the board passes through the paint curtain at a constant speed to complete automatic coating, and cross-links into a film instantly under UV ultraviolet light. It is specially adapted to flat board curtain coating production line, and can achieve mirror high gloss, high fullness and high permeability surface effect. It is a mainstream high-end coating material for furniture large boards, decorative wall panels and cabinet doors.

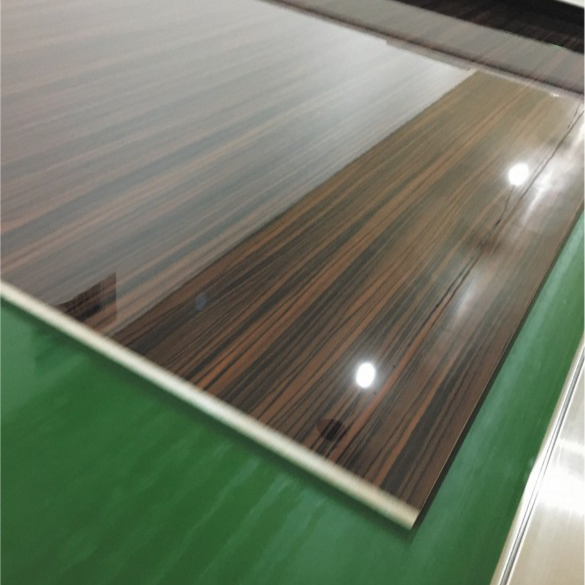

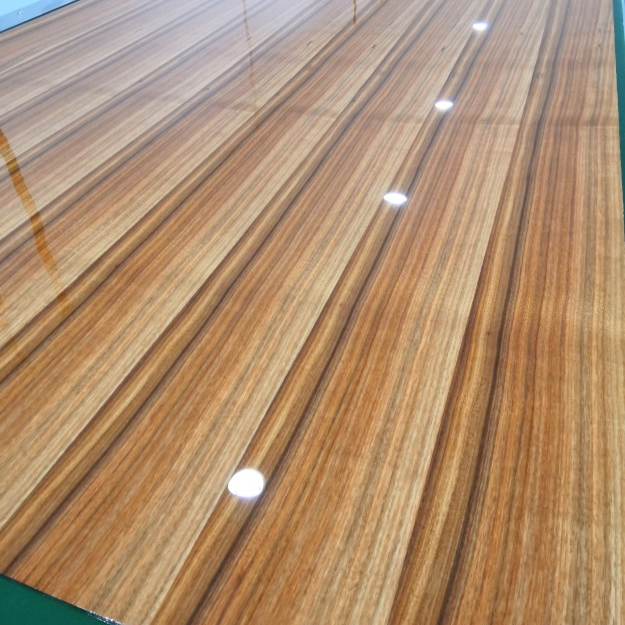

Curtain coating UV high-gloss large board: It is a decorative high-gloss board made of MDF, solid wood multi-layer board, melamine base board, calcium silicate board as substrate, through the complete process of primer sanding + curtain coating UV high-gloss topcoat + UV curing. It has strong mirror effect, high hardness, scratch resistance and yellowing resistance, widely used in whole house customization, custom furniture and background wall decoration.


Application

· Custom furniture

· Decorative building materials

· Wood products

· Particle boards



Characteristics

High environmental protection grade: Non-Solvent, low VOC

Fast curing speed: Dry in 1–3 seconds under UV curing machines

Mirror high-gloss effect

Excellent film performance: High fullness, high hardness, strong adhesion, scratch resistance

Good construction adaptability

Physical Technical Parameters




Construction Equipment
Standard production line configuration for curtain coating UV high-gloss board:
Board loading machine → Double-sided dust remover → Primer roller coater → UV curing machine → Wide belt sander → Pre-curtain leveling roller coater → Curtain coater → IR infrared leveling machine → UV high-gloss curing machine → Cooling conveyor → Board collector

Core equipment description:

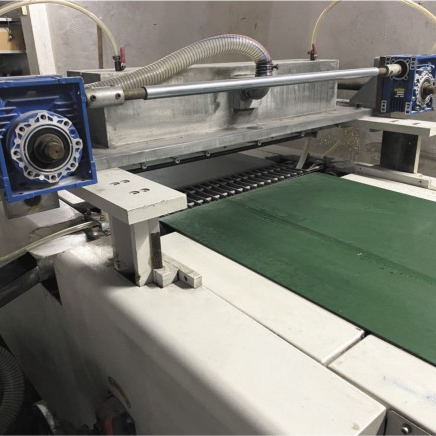

Curtain coater: Adjustable paint curtain thickness, anti-breakage and anti-bubble, conveyor speed 6~10m/min;
Roller coater: Used for primer and pre-curtain thin coating, uniform coating and improve adhesion;
IR infrared leveling machine: Temperature control 30~50℃, make curtain coating surface level naturally, eliminate orange peel and pinholes;
UV curing machine: Equipped with medium pressure mercury lamp / LED-UV lamp, power 80~120W/cm to meet curing energy;
Wide belt sander: 400#~600# sandpaper, fine sanding for primer to ensure flat and dust-free board surface.



Coating Process Steps

Substrate Pre-treatment:rough sanding with 320 mesh → fine sanding with 400–600#

Step 1: Roller Coating UV Adhesion Primer

Step 2: Roller Coating UV Sanding Primer

Step 3: Pre-curtain Base Roller Coating

Step 4: Curtain Coating UV High-gloss Topcoat

Step 5: IR Infrared Leveling

Step 6: UV High-intensity Curing

Step 7: Cooling, Inspection, Protect film Lamination & Warehousing

Product Advantages
These features simplify system design by reducing equipment requirements related to solvent handling or baking, positioning this coating as a preferred choice among industrial coating suppliers focusing on sustainability and system efficiency. The broad substrate compatibility enhances operational flexibility for manufacturers addressing varied product lines.

Performance Reliability and User-Centric Value
This product delivers superior surface hardness and adhesion, contributing to scratch and chemical resistance essential in commercial and residential furniture applications. The fast UV curing time significantly reduces cycle times on production lines, minimizing downtime and improving throughput. As a durable uv protective coating, it provides consistent mirror gloss and excellent leveling, ensuring high aesthetic standards required in upscale market segments. The coatings’ low VOC profile supports compliance with environmental guidelines, offering long-term value in operational cost savings and regulatory adherence for end users and procurement professionals.

FAQ

What types of flat boards are compatible with your CURTAIN UV COATING?
We formulate our CURTAIN UV COATING to work on various substrates, including MDF, solid wood multilayer, melamine panels, and calcium silicate boards. Its advanced resins ensure a mirror-like gloss and durable finish across all these flat surfaces.

Can CURTAIN UV COATING be customized for different production lines or surface requirements?
Yes, we offer tailored solutions to fit your specific line speeds and substrate needs. Our UV coating’s solids, solvent-free composition can be adjusted within technical limits to optimize curing and surface properties to your production setup.

How does CURTAIN UV COATING benefit continuous production without baking steps?
Our coating cures fully within 1–3 seconds under UV light, eliminating the need for baking. This rapid curing supports continuous production lines by reducing downtime and maintaining consistent high-gloss finish quality throughout your manufacturing process.

Do you provide technical support for the application and maintenance of this UV protective coating?
We provide expert guidance on installation, curing parameters, and maintenance best practices for the CURTAIN UV COATING. Our team ensures that your use of this industrial coating supplier product maximizes durability and gloss performance on your substrates.

Design and System Integration Benefits
CURTAIN UV COATING is adapted to curtain coating lines that facilitate continuous, no-bake curing processes, allowing efficient integration into existing industrial workflows. Its solvent-free formulation comprising epoxy and polyurethane acrylate resins is optimized for compatibility across diverse substrates such as MDF and melamine panels.
