Cabinet UV coating
With the continuous innovation of plate technology, the base materials of cabinets have also moved away from single varieties, covering materials such as plywood, rubber wood, density board, particleboard, melamine veneer, etc. If we make the coating more universal and achieve a set of paint that can be used universally for cabinet boards with various substrates, you can learn about our versatile cabinet UV paint. With strong adhesion2H, and excellent resistance to yellowing, coupled with the process of adjusting multiple colors on the surface, the coating of cabinets becomes simple, efficient, and rich.
Product Introduction
Cabinet board UV coating is a UV curable coating based on modified acrylic resin, epoxy resin, and urethane acrylate, combined with photoinitiators, leveling agents, anti-abrasion additives, and scratch-resistant agents. It is suitable for high-gloss, wear-resistant, oil-resistant, yellowing-resistant, and easy-to-clean coating on cabinet boards.Common types: UV sealer primer, UV intermediate putty, UV wear-resistant topcoat, UV high-gloss topcoat, UV matte/skin-feel topcoat.
Features
● FAST DRY: 3-5 seconds to form a film
● High hardness and scratch resistance: pencil hardness ≥ 2H, scratch resistance
● Environmentally friendly and low VOC:
● Good leveling performance
● Yellowing resistance
Application Scope

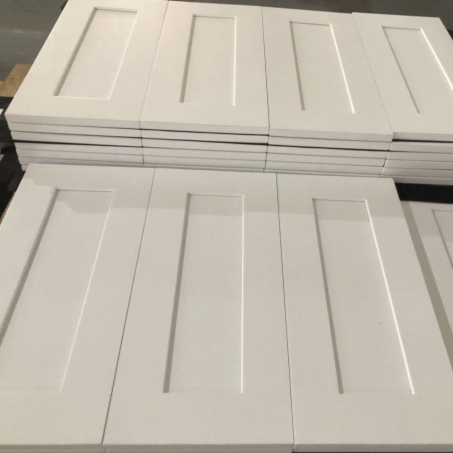

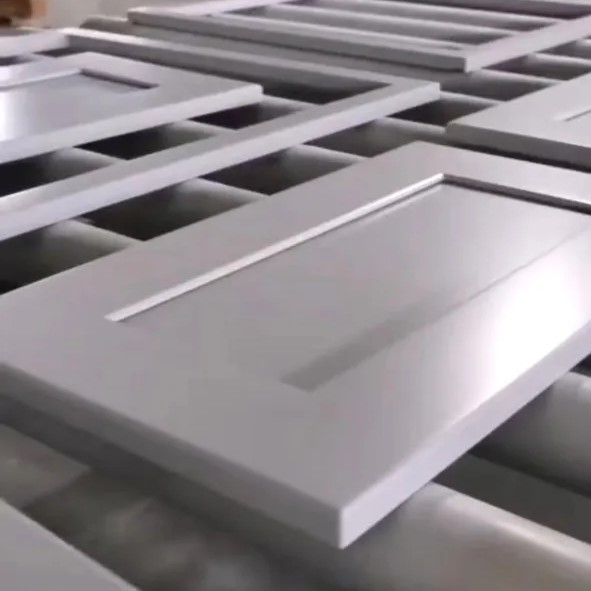

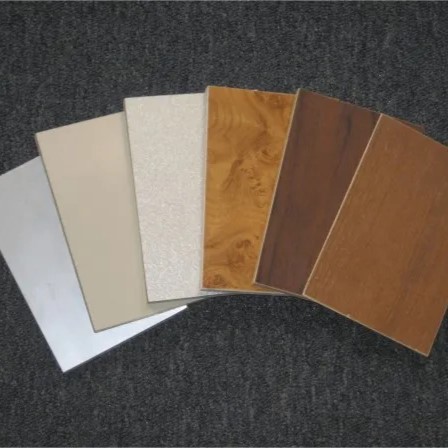

1.Cabinet door panels, cabinet body boards, kitchen decorative boards
2.Wardrobe boards, bathroom cabinet boards, balcony cabinet boards

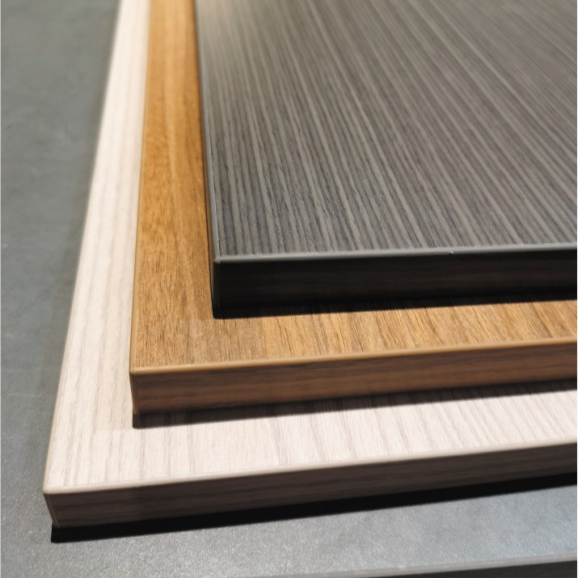

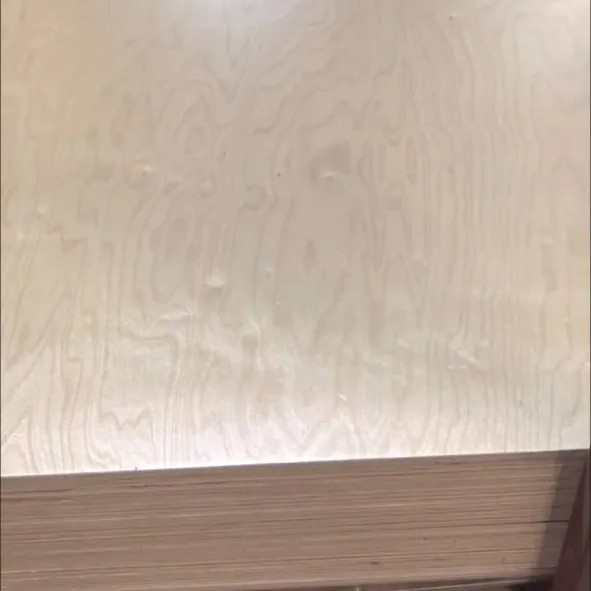

3.MDF, particleboard, plywood, flakeboard
4.Decorative panels, wall panels, furniture panels
5.High-gloss, matte, skin-feel, super-smooth surface effects
Performance Characteristics
1.Instant curing: film formed in 1–3 seconds under UV light, high-efficiency continuous production.
2.High hardness & scratch resistance: hardness 2H–5H, wear-resistant and scratch-resistant.
3.Oil-resistant & easy cleaning: kitchen oil, soy sauce, water stains can be wiped easily.
4.High gloss & fullness: mirror high-gloss effect, excellent flatness.
5.Eco-friendly & solvent-free: low VOC, formaldehyde-free, heavy metal-free.
6.Strong adhesion: no peeling, no cracking, no delamination.
7.Anti-yellowing: no yellowing or discoloration under long-term light.
Physical Parameters
| Item |
Value |
| Appearance |
Transparent / slightly turbid liquid |
| Solid Content |
98%–100% |
| Density |
1.05–1.20 g/cm³ (25℃) |
| Viscosity |
100–350s (25℃ 4# cup) |
| Pencil Hardness |
2H–5H |
| Adhesion |
Grade 0 / 1 |
| Gloss |
10°–95° (matte / gloss) |
| Taber Abrasion |
≤30–50mg/1000 R |
| VOC |
≤5g/L |
| Curing Energy |
400–1000 mJ/cm² |
|
Technical data
| Test Item |
High gloss Type |
Matte Type |
Test Standard |
| Pencil Hardness |
≥2H |
≥2H |
GB/T 6739 |
| Cross-cut Adhesion (1mm grid) |
Grade 0 |
Grade 0 |
GB/T 9286 |
| Gloss Value (60°) |
88 – 96° |
12 – 45° adjustable |
GB/T 9754 |
| Hot Water Resistance (60°C, 24h) |
No blistering, whitening or peeling |
No blistering, whitening or peeling |
Internal test |
| Humidity & Heat Resistance (60°C / 95%RH, 240h) |
No surface defects |
No surface defects |
GB/T 1740 |
| 50% Ethanol Resistance (8 hours) |
No whitening or gloss drop |
No whitening or gloss drop |
Internal test |
| Stain Resistance (Vinegar, cleaner, tea, 1 hour contact) |
Stains can be fully wiped off without permanent marks |
Stains can be fully wiped off without permanent marks |
Cabinet household requirement |
| QUV B UV Aging Test (168h) |
ΔE ≤3.2 |
ΔE ≤3.2 |
Indoor anti yellowing requirement |
| MEK Double Rub Test |
≥60 double rubs, no substrate exposure |
≥60 double rubs, no substrate exposure |
Internal test |
| Impact Resistance |
No cracking under 50 cm impact |
No cracking under 50 cm impact |
Internal test |
Apply Method Recommended

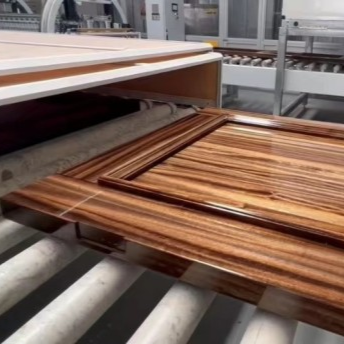

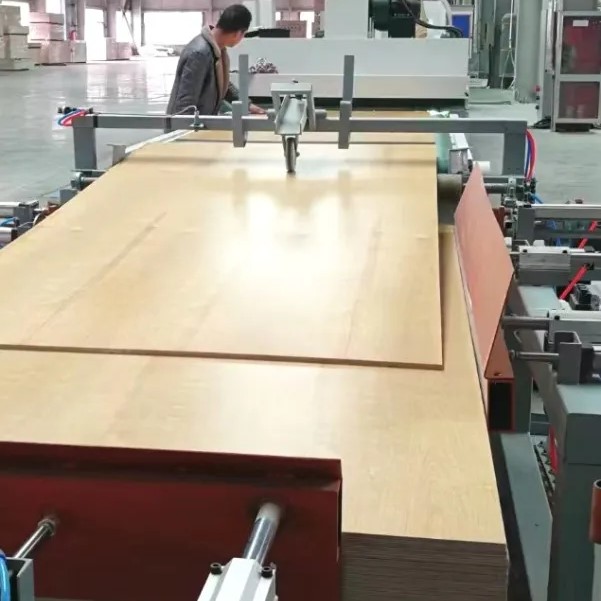

UV Roller Coating
1 Suitable Products
UV sealer primer, UV intermediate coat, UV high-gloss topcoat, UV wear-resistant topcoat.
2 Application
High-volume automatic production line for cabinet boards, wardrobe boards, high-gloss boards, matte boards.
3 Equipment
Double-roller coater, triple-roller coater, UV curing machine, leveling oven, sanding machine.
4 Process Steps
1.Substrate treatment: sanding, dust removal, degreasing.
2.Roller coat UV sealer primer.
3.Preheat leveling: 40–60℃, 30–60s.
4.UV curing: 150–350 mJ/cm².
5.Light sanding: 400#–600#, dust removal.
6.Roller coat UV intermediate / topcoat.
7.Leveling: 60–80℃, 1–2min.
8.UV full curing: 600–1000 mJ/cm².
9.Cooling and output.
5 Coverage
Primer：15–30 g/m²,Intermediate：8–50 g/m²,Topcoat：10–16 g/m²

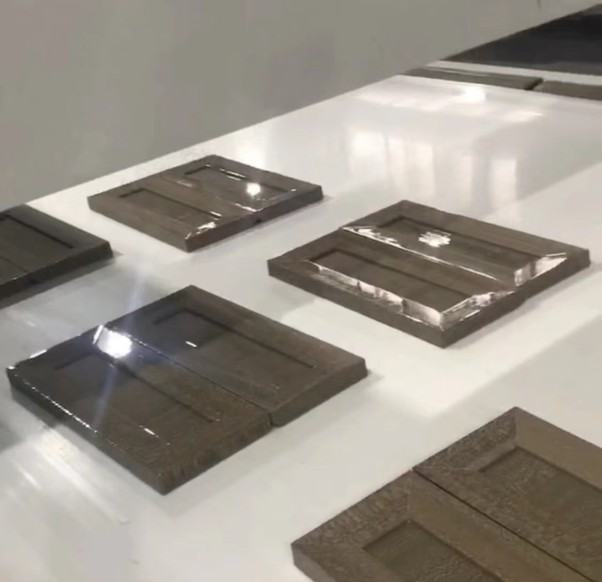

UV Curtain Coating
1 Suitable Products
UV high-gloss curtain topcoat (mirror effect).
2 Application
High-end cabinet high-gloss door panels, super bright decorative panels.
3 Equipment
Curtain coater, leveling machine, high-pressure mercury UV curing machine.
4 Process Steps
1.Board sanding and dust removal.
2.Roller primer → curing → sanding.
3.Curtain coat UV high-gloss topcoat.
4.High-temperature leveling: 80–100℃, 1–3min.
5.UV strong curing: 800–1200 mJ/cm².
6.Cooling and finished.
5 Coverage
Topcoat：120–150 g/m²
UV Spray Coating
1 Suitable Products
UV skin-feel topcoat, UV matte topcoat, UV special coating for shaped boards.
2 Application
Special-shaped cabinet doors, molded boards, skin-feel door panels, small-batch custom boards.
3 Equipment
Automatic reciprocating spray machine, electrostatic spray machine, UV curing oven, dust-free spray booth.
4 Process Steps
1.Sanding and dust removal.
2.Spray UV primer → leveling → UV curing.
3.Sanding and dust removal.
4.Spray UV skin-feel or matte topcoat.
5.Leveling for 5–10min.
6.UV curing: 500–800 mJ/cm².
Inspection.
5 Coverage
Primer：30–50 g/m²,Topcoat：10–18 g/m²
Comparison and summary of three painting methods
1.UV Roller Coating: highest efficiency, lowest cost, suitable for mass flat panels.
2.UV Curtain Coating: highest gloss, mirror effect, suitable for high-gloss doors.
3.UV Spray Coating: suitable for special-shaped boards, skin-feel effect, high flexibility.
Product Advantages
Structural and System Design Benefits in Coating Formulation
The design of this cabinet uv coating manufacturer’s product line incorporates modular formulations suitable for primer, putty, intermediate, and topcoat layers, ensuring optimal adhesion and coating system integrity. It is engineered specifically for use as a cabinet board uv coating supplier solution, allowing seamless integration with existing production processes and coating equipment. The various finish options, including gloss, matte, and skin-feel topcoats, provide customization to meet diverse client requirements. The UV curing technology enhances line-speed efficiency while maintaining uniform coating thickness, critical in applications requiring uv coating for cabinet doors. Its self-leveling characteristics reduce rework, enabling consistent finish quality and reliable system performance.
Performance Reliability and Operational Value for Industrial Users
This cabinet uv coating manufacturer guarantees high gloss cabinet uv coating performance with superior scratch and wear resistance, supporting long-term surface durability in demanding environments. The coatings offer oil and chemical resistance, essential for kitchen and bathroom cabinetry exposed to harsh conditions. Ease of cleaning and anti-yellowing properties contribute to sustained aesthetic value and minimize maintenance costs. Its solvent-free, low-VOC composition aligns with environmental compliance and workplace safety standards. As a cabinet board uv coating supplier, the product enhances operational workflows by providing rapid curing and strong adhesion, reducing downtime and improving ROI for industrial scale coating applications.
Use Scenarios
High-Volume Cabinet Door Panel Finishing in Automated Manufacturing
In automated cabinetry manufacturing environments, this cabinet uv coating manufacturer provides a robust uv coating for cabinet doors that accommodates high-speed assembly lines. Its instant curing capability reduces cycle times while ensuring consistent coating thickness and surface uniformity. The system’s compatibility with roller, curtain, and spray application methods enables its integration into diverse production systems, meeting throughput demands without sacrificing finish quality. The advanced high gloss cabinet uv coating enhances visual appeal and abrasion resistance, essential for kitchen and wardrobe cabinet doors subject to frequent handling. As a preferred cabinet board uv coating supplier, it supports compliance with regulatory VOC standards while maintaining efficient resource utilization.
Protective Coating for Engineered Wood Cabinet Boards in Residential Furniture
The cabinet uv coating manufacturer supplies coatings tailored for engineered wood substrates such as MDF, particleboard, and plywood used in residential cabinetry. Its formulations provide strong adhesion with resistance against peeling and cracking, essential for furniture longevity. By offering oil-resistant and easy-to-clean surfaces, the cabinet board uv coating supplier’s products improve cabinet maintenance in kitchen, bathroom, and balcony environments. The inclusion of anti-yellowing agents preserves coating clarity, ensuring aesthetic consistency over time. The uv coating for cabinet doors application method facilitates a durable, decorative finish that integrates smoothly within existing finishing workflows and meets industrial standards for furniture surface protection.
FAQ
What types of wood panels can CABINET UV COATING be applied to?
Our cabinet uv coating is compatible with MDF, particleboard, plywood, and flakeboard. It provides durable protection and aesthetic finishes on various engineered wood panels, ideal for cabinetry in kitchens, wardrobes, bathrooms, and balconies.
Can you customize the finish options for the cabinet board UV coating?
Yes, we offer multiple finish types including high-gloss, matte, and skin-feel topcoats. This allows you to select the appropriate surface texture and gloss level to fit your design needs when ordering our cabinet board uv coating supplier services.
What are the recommended application methods for this UV coating?
We support UV roller coating, curtain coating, and spray coating methods for efficient application. This flexibility ensures the uv coating for cabinet doors can be integrated into your production line with minimal adjustments and consistent results.
How do you ensure the coating’s environmental safety and compliance?
Our formulation is solvent-free, with VOC levels below 5g/L, and contains no formaldehyde or heavy metals. We prioritize eco-friendly standards while delivering high-performance cabinet uv coating products that meet industrial and environmental regulations.
